Wired ANC, Done Properly

Bluetooth ANC earphones get most of the attention. But wired ANC has a quiet advantage: zero latency, zero pairing friction, zero battery dependence. The AE001 is built for the user who wants silence on demand without the overhead — and for the buyer who wants an ANC product that holds its performance claim.

With >25dB of measured noise reduction, 12mm dual drivers, and an anti-interference microphone, the AE001 is designed to perform where it counts: in the office, on the commute, and on every call.



Active Noise Cancellation — >25dB, Measured and Verified

The AE001 uses feedforward ANC architecture to sample and invert incoming ambient noise before it reaches the ear. The result is greater than 25dB of attenuation across the target frequency range — most effective against the low-to-mid frequency steady-state noise that dominates daily listening environments:

• Office HVAC and air conditioning systems
• Public transport engine and road noise
• Open-plan workspace background conversation
• Café, airport, and transit hub ambient noise

This figure is not a marketing estimate. ANC depth is measured and validated using our in-house B&K 4128 artificial head measurement system and AP2722 audio analyzer. Batch consistency is verified against spec before shipment.



12mm Dual Dynamic Drivers — Full-Range Audio Architecture

At the core of the AE001 sit two matched 12mm dynamic drivers — a driver diameter more commonly found in over-ear headphones. This configuration delivers:

• Extended low-frequency response with physical bass presence, not just tonal warmth
• Clear midrange reproduction — voice, acoustic instruments, and podcasts with natural timbre
• Controlled high-frequency extension without listening fatigue on extended wear

The 32Ohm impedance and 112dB±3dB sensitivity rating ensure adequate volume output from mobile device headphone adapters and USB-C audio implementations without amplification.



Technical Specifications

Parameter	Specification
Product Model	AE001
Driver Size	12.0mm × 2 pcs
Impedance	32 Ohm
Sensitivity	112 ±3 dB
Frequency Response	20Hz – 20kHz
ANC Depth	>25 dB
Microphone Specification	Φ6.0 × 2.2mm
Microphone Sensitivity	-35 dB ±3dB
Plug Type	Type-C
Cable Length	1.2m ±10%
Compatible Chipset	AB136D
Shell Material	Metal
Available Colors	Black, White



Anti-Interference Microphone — Calls That Stay Clear

The AE001 integrates a dedicated noise-cancelling microphone system designed to isolate voice from ambient noise at the source. The Φ6.0×2.2mm microphone element, combined with the anti-interference circuit, achieves:

• Stable voice signal in environments up to moderate ambient noise levels
• -35dB±3dB sensitivity tuned for close-field vocal pickup in typical handheld-to-face usage distance
• Reduced wind noise and handling noise for outdoor call use cases

For business users, remote workers, and commuters, the call quality of a wired earphone has always been its functional differentiator over Bluetooth. The AE001 is built to sustain that advantage.

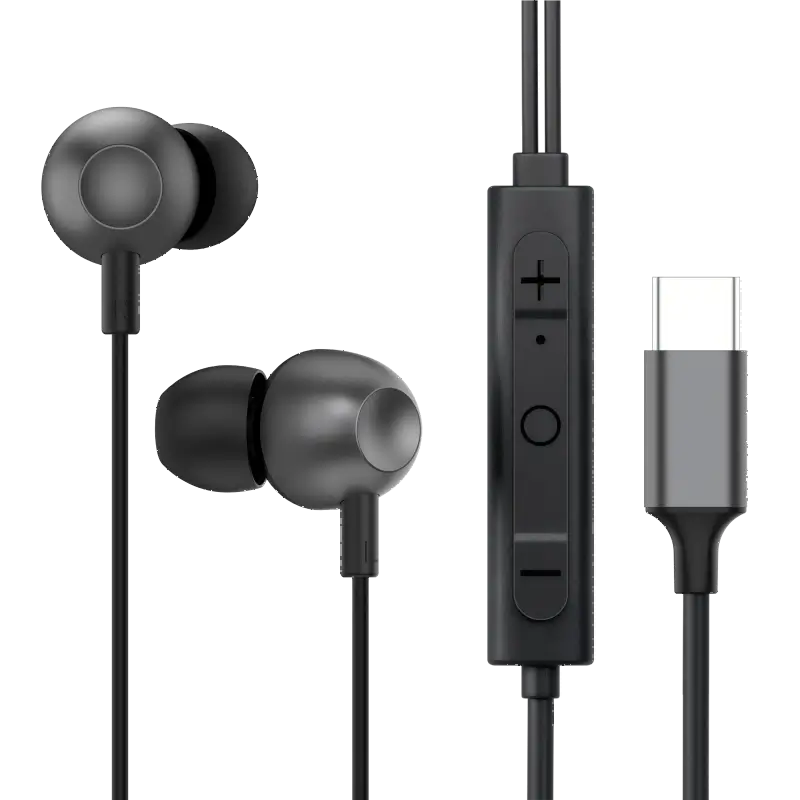

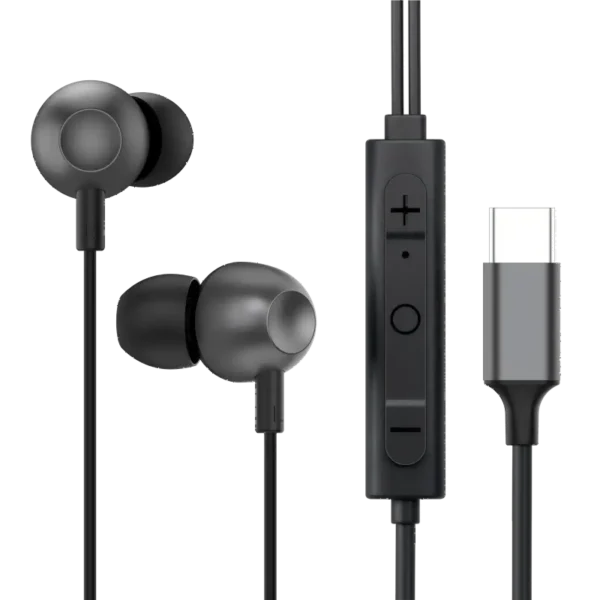

Metal Shell + Inline Controls — Built for Daily Use

The metal earshell serves two purposes: it provides a durable, wear-resistant housing that outlasts plastic alternatives in daily-use conditions, and it contributes to the acoustic chamber’s damping characteristics — reducing internal resonance and improving transient response clarity.

The inline remote module includes:

• Volume up / Volume down buttons with defined tactile click
• Microphone mute / call answer-end function
• Compact form factor designed to sit naturally at mid-cable without cable pull

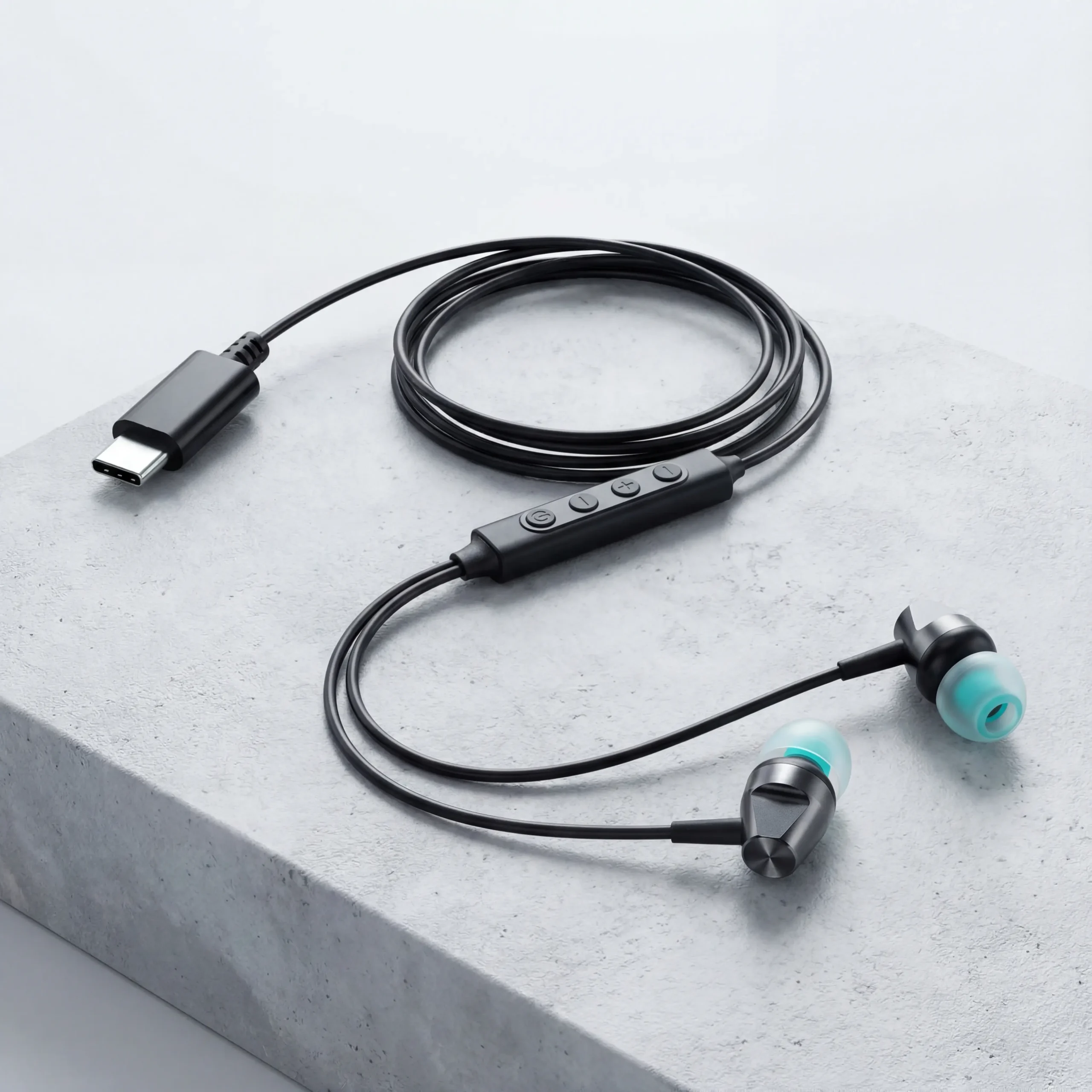

Type-C Wired Connection — Zero Compromise Reliability

Wired audio has three advantages that ANC Bluetooth cannot replicate: zero transmission latency, consistent signal integrity regardless of RF environment, and no charge management. The AE001’s Type-C connection is compatible with:

• Android smartphones with USB-C audio output (Samsung, Xiaomi, OPPO, Vivo, OnePlus, Huawei)
• Windows and Mac laptops with USB-C ports
• Tablets and portable media devices
• Standard USB-C to 3.5mm audio adapters (for legacy 3.5mm-only devices)



B2B Capabilities: OEM/ODM Partner Options



Customization Service	What We Offer
ANC Performance Tuning	Adjustable ANC depth targets; feedforward or feedforward+feedback hybrid architecture options
Driver Configuration	12mm standard or alternative driver diameter; custom frequency response profiling by our acoustic engineers
Shell Material & Color	Metal shell in custom finishes; color options beyond standard black/white; logo engraving or printing
Cable & Connector	Cable length customization; braided cable options; 3.5mm variant available alongside Type-C
Microphone & Controls	Inline remote button layout; custom microphone sensitivity tuning; additional EQ button options
Chipset Selection	AB136D standard; alternative ANC chipset options available for specific performance targets
Packaging	Retail box, gift packaging, carry pouch, branded tip sets, QC certificate inserts
MOQ	Negotiable — flexible for small-batch private label entry and high-volume wholesale programs



Why This Product Wins



The wired ANC category is under-served at accessible price points — most buyers associate ANC with Bluetooth premium products. The AE001 closes that gap with a specification that holds up to scrutiny: a measured and verified >25dB ANC figure, 12mm dual drivers, and a call-quality system built for the environments where wired earphones are actually used.

Every unit undergoes acoustic measurement and ANC performance verification using our B&K 4128 artificial head system and AP2722 audio analyzer before shipment. Batch consistency is not assumed — it is tested.



MOQ is negotiable. Private label and full OEM/ODM projects welcome. Contact us to discuss target markets, chipset preferences, or custom tuning requirements.
